AUTOMATIC AND SEMI-AUTOMATIC RIVETING

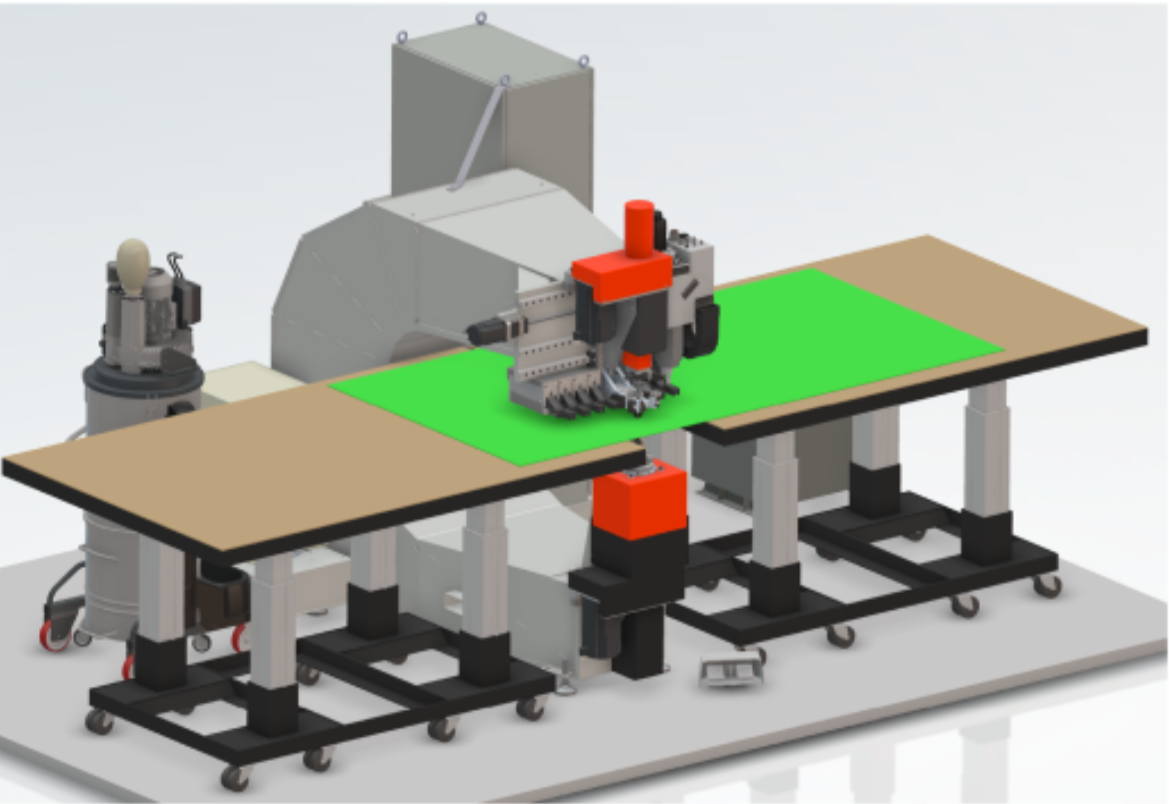

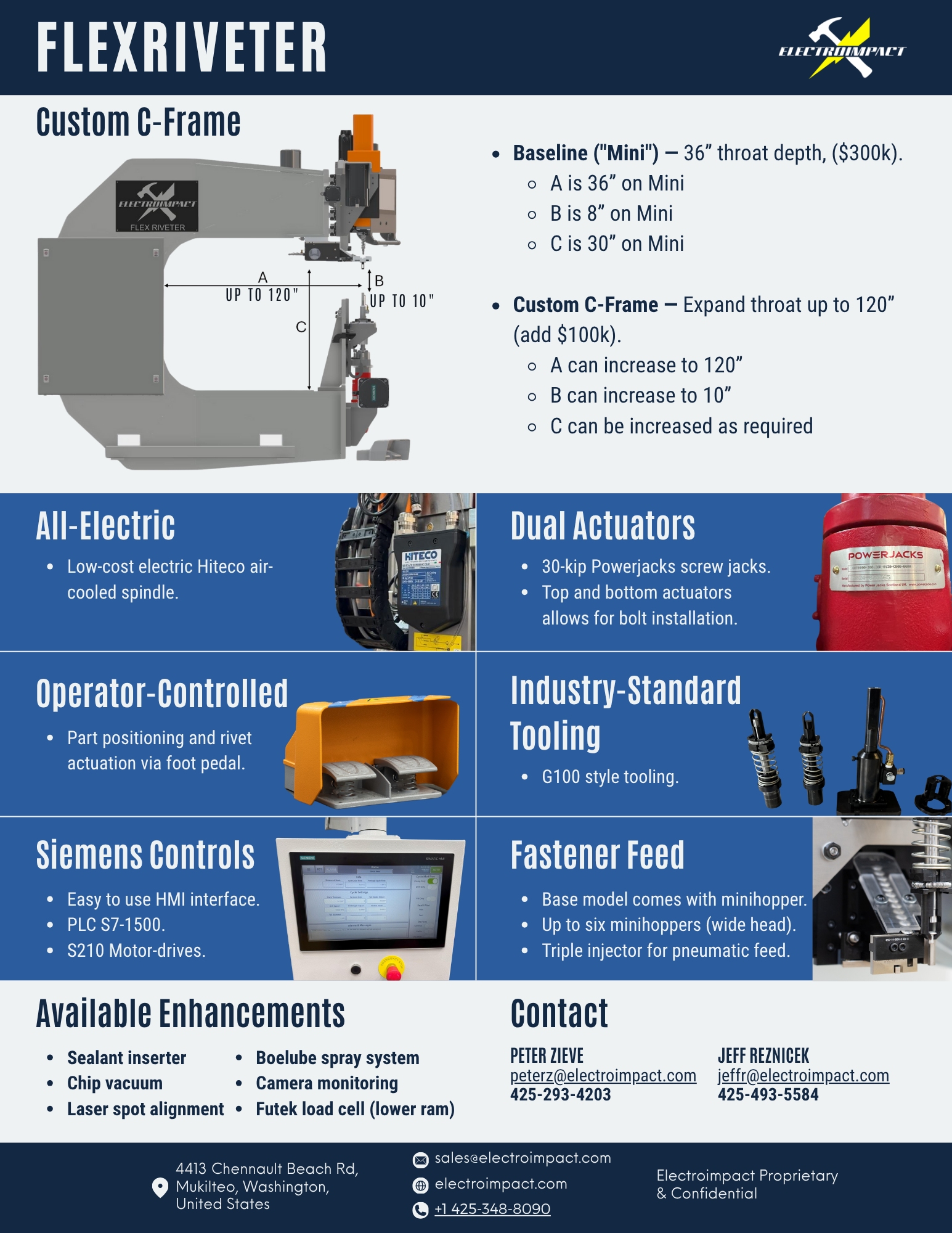

Here is a variation with adjustable part support tables and six mini-hoppers mounted on the head that facilitates an ARS

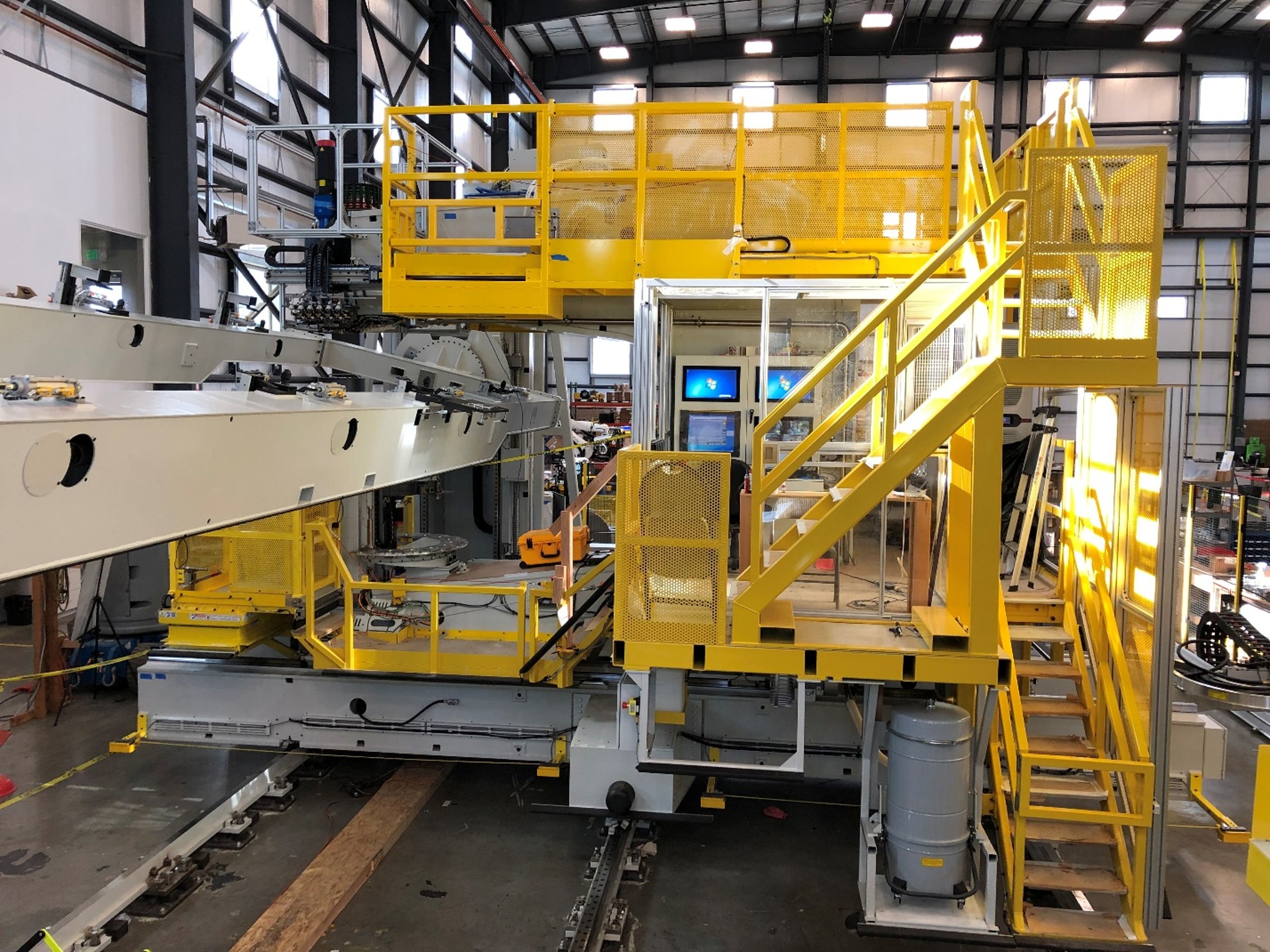

In an Automatic C-Frame Riveter the rivet position is controlled by a CNC control running a part program. The part is held in a barge that moves the part from rivet location to rivet location. For these machines the X and Y axes are on the C-Frame.

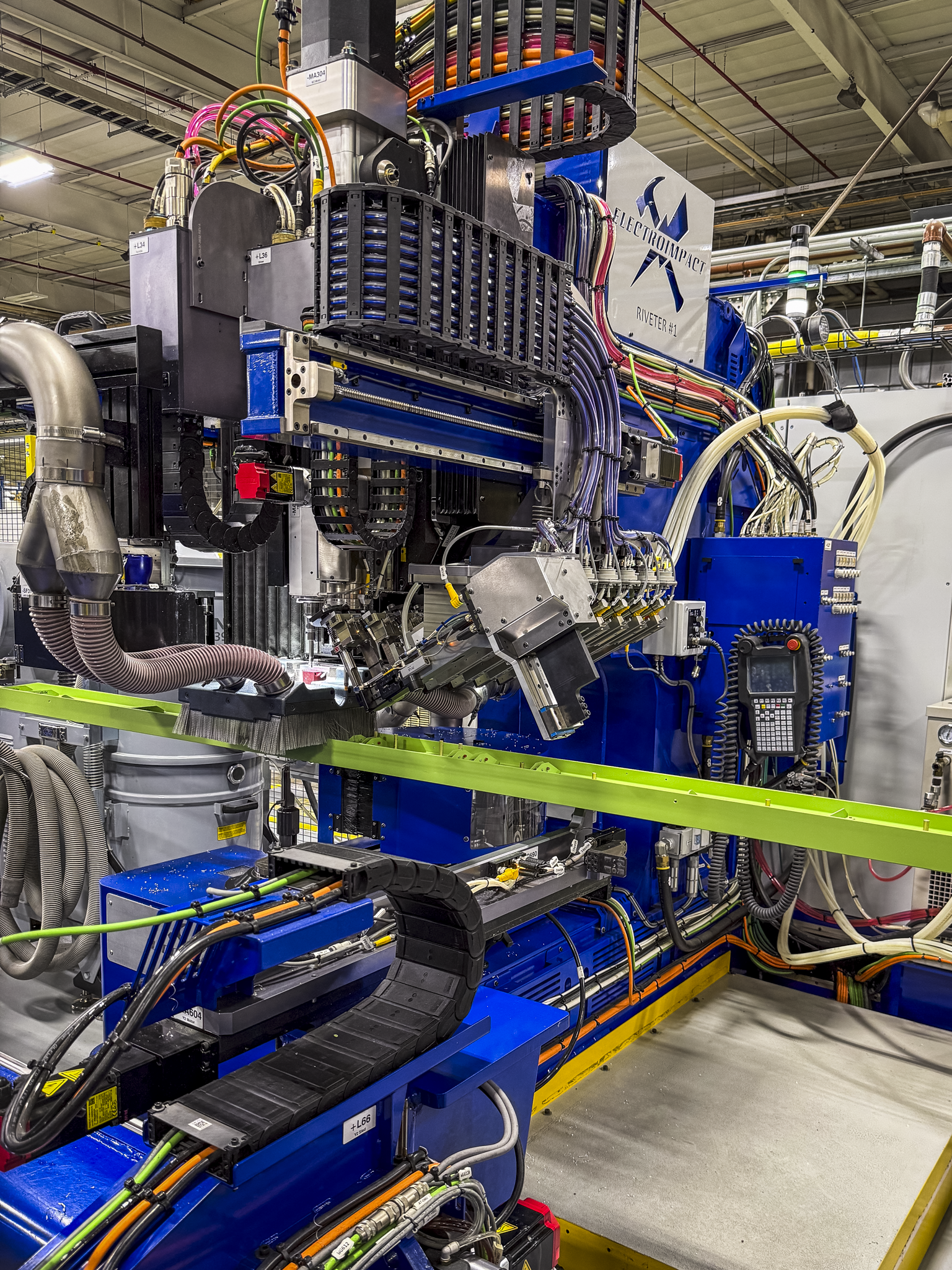

This is a lights-out riveting system with operator intervention not required. The riveter is automatically loaded by a robot. Automatic Tool Change (ATC) for drill chucks, upper rivet anvils, clamp feet, lower rivet anvils and injectors. This riveter automatically inserts a wide variety of rivets and bolts.

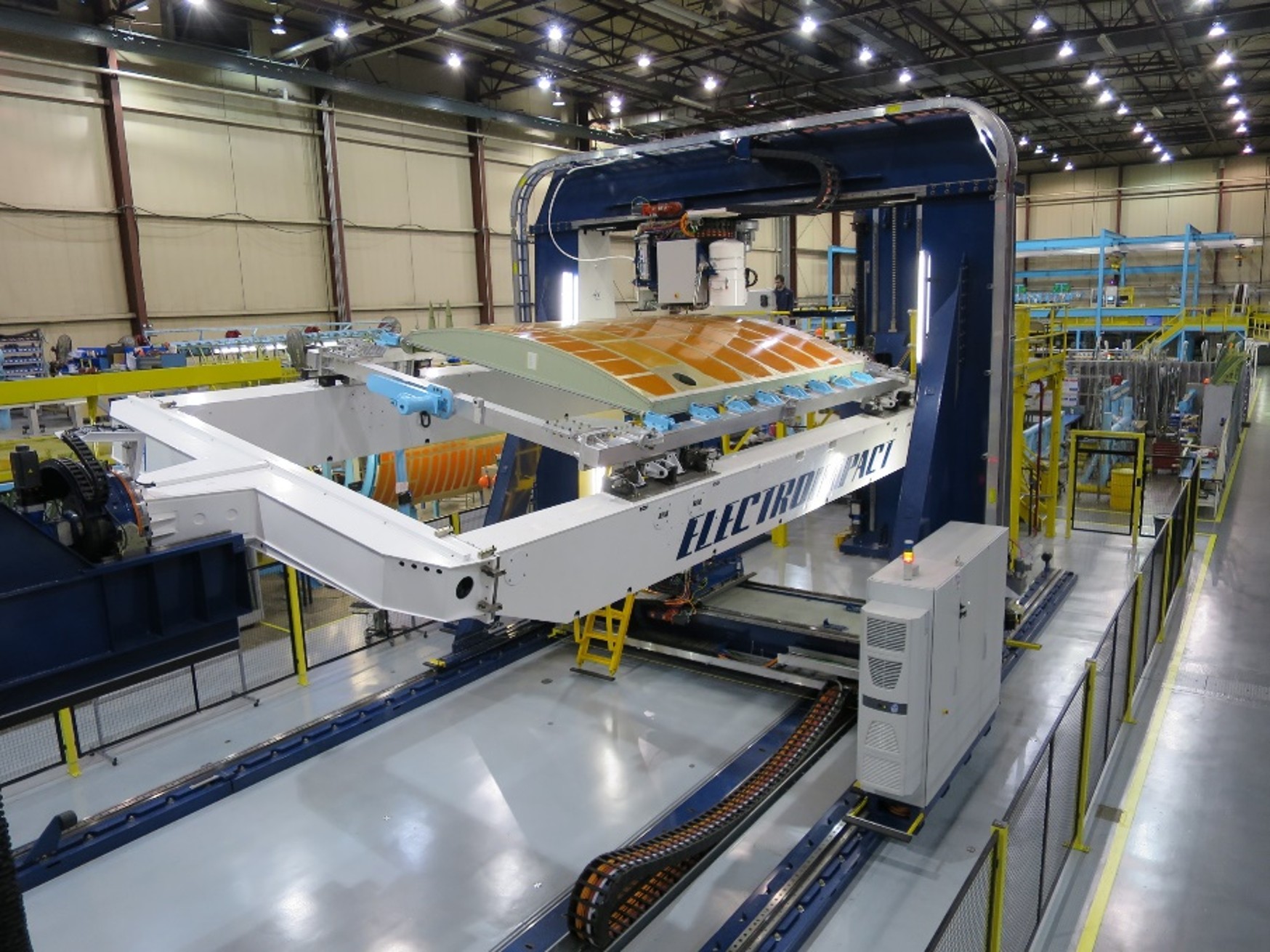

Riveting machine for Center Wingbox covers. Installs both rivets and bolts and positioning of the cover is in five axes. Covers as large as 6 meters width and 6 meter length can be processed. Features automatic drill changer, automatic upper anvil changer, automatic lower anvil changer which includes a variety of offset anvils. A wide variety of rivets and bolts are automatically fed.

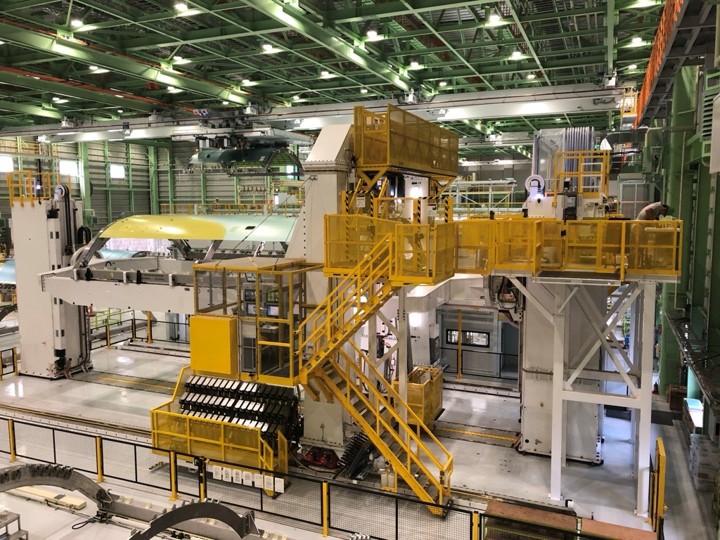

Processes the super panel for the largest commercial aircraft. Features automatic drill changer, automatic upper anvil changer, automatic lower anvil changer which includes a variety of offset anvils. A wide variety of rivets and bolts are automatically fed.

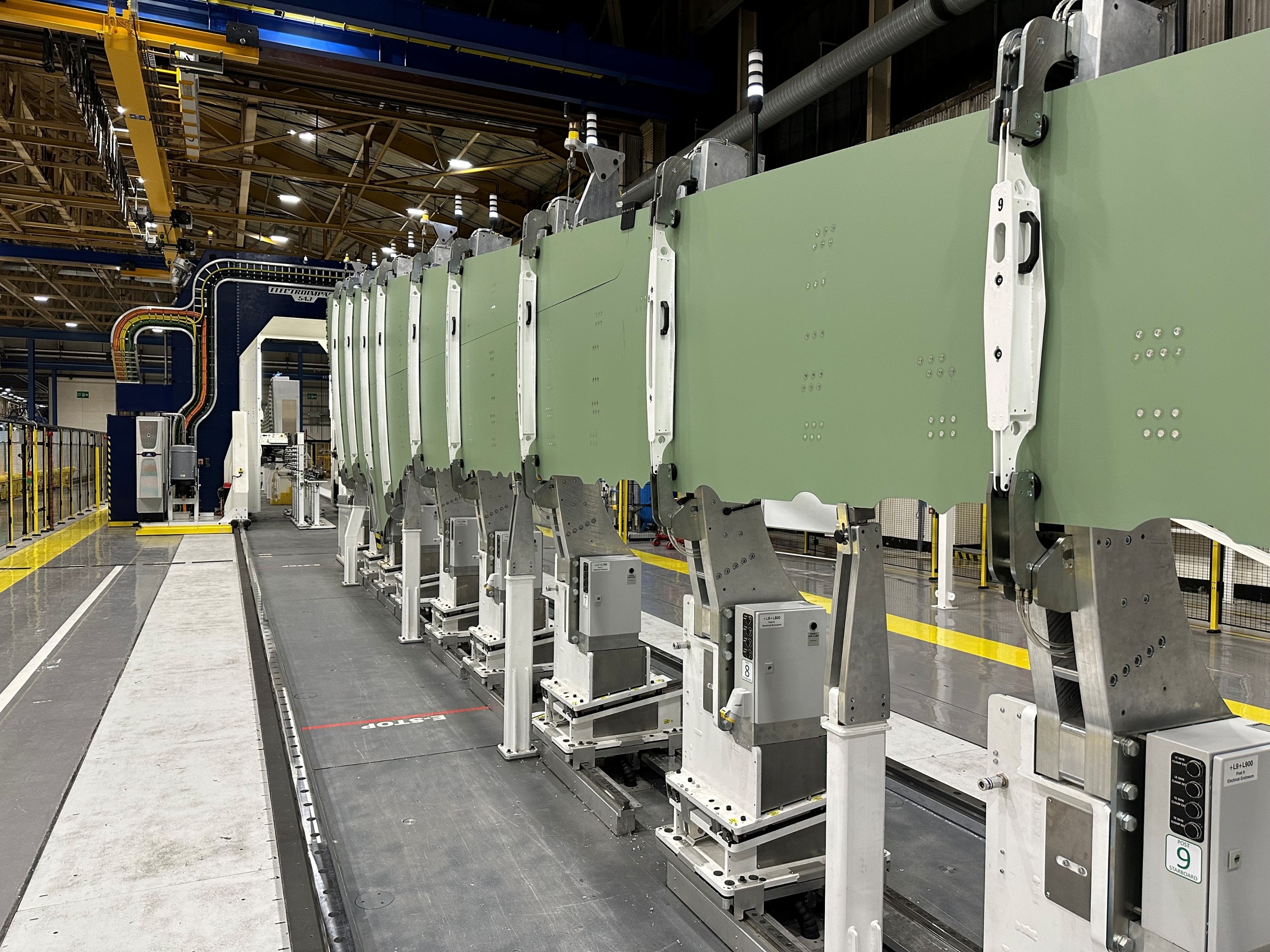

Gantry riveter is an effective way to process wing to stringer, butt strap and reinforcing plates. Gantry riveting machine automatically installs rivets, hi-loks and lockbolts. The fixture is fully automated and is controlled by the Fanuc control on the gantry machine. The fixture posts automatically move out of the way to allow the gantry machine to process the entire wing panel.
